What is an instrument enclosure?

An instrument enclosure is a protective housing built around a field instrument, transmitter, analyzer, gauge, or piece of electronic test equipment to shield it from weather, dust, moisture, corrosive vapors, vibration, and temperature extremes. In a process plant it typically bolts to a 2-inch pipe stand or wall bracket next to the device it protects; on a bench or in a rack, it is the case the instrument itself lives inside.

Why do field instruments need an enclosure at all?

Transmitters, analyzers, and gauges are precision electronics, and most are only rated for a limited range of temperature, humidity, and ingress exposure on their own. Outdoors at a refinery, chemical plant, or water treatment site, direct sun, rain, wash-down water, dust, and winter cold can all push the device outside its rated operating window or accelerate corrosion of its housing and terminals. An enclosure keeps the instrument inside the environment it was actually designed for.

What is the difference between a NEMA rating and an IP rating?

Both describe how well an enclosure keeps out solids and liquids, but they come from different standards bodies and are tested differently. NEMA (National Electrical Manufacturers Association) ratings are common in North America and combine ingress protection with other factors like corrosion resistance and icing; IP (Ingress Protection) ratings, from the IEC, describe only solids and liquids using a two-digit code. NEMA 4X and IP66 are frequently referenced together because their practical protection against dust and powerful water jets is similar, but the two systems are not a strict one-to-one conversion, so always check the actual test rating for the enclosure you are specifying.

What does NEMA 4X or IP66 actually protect against?

NEMA 4X and IP66 enclosures are built to resist wind-blown dust, rain, splashing, and hose-directed water without letting moisture reach the interior, and NEMA 4X specifically adds corrosion resistance to that standard. That combination is why these two ratings show up so often on outdoor process instrument enclosures: the instrument sees wash-down, rain, and humidity, and the housing has to shrug all of it off without rusting through over years of service.

What is the difference between a fiberglass (GRP) and a stainless steel instrument enclosure?

Fiberglass-reinforced polyester (GRP) enclosures are naturally corrosion-proof, non-conductive, lightweight, and generally the lower-cost option for chemical, coastal, and wastewater environments where metal would corrode. Stainless steel enclosures cost more but offer higher mechanical strength, better resistance to physical impact and UV degradation over decades, cleanable smooth surfaces for hygienic or pharmaceutical service, and, in the right alloy, comparable corrosion resistance to fiberglass. The choice usually comes down to the specific corrosive exposure, mechanical risk, budget, and whether the site standardizes on one material.

When is a heated or insulated enclosure needed?

Any site with hard freezes needs to consider winterization for instruments carrying liquid, since a frozen impulse line or process connection can give a false reading or damage the transmitter. Insulated enclosures slow heat loss on their own; heated enclosures add a heat source, most commonly electric heat trace or a small thermostatically controlled heater, and sometimes steam tracing where steam is already available on site, to hold the enclosure interior above freezing through the coldest stretch of winter.

What is a hazardous (classified) area rating, and does every enclosure need one?

A hazardous area classification describes a location where flammable gases, vapors, or combustible dust may be present, and North America (Class/Division or Class/Zone, per the National Electrical Code) and the international IECEx/ATEX system both define the categories and set requirements for equipment installed there. Not every instrument enclosure needs a hazardous-area rating; it depends entirely on where the instrument is installed. A transmitter mounted in a general-purpose outdoor area does not need it, while the identical transmitter mounted next to a process line in a refinery unit almost always does. Always confirm the area classification for the actual installation location before specifying the enclosure.

What is a sunshade, and is it a substitute for an enclosure?

A sunshade is an open-backed cover, usually fiberglass or stainless, mounted over an instrument to block direct solar radiation and reduce the internal temperature swing the instrument sees. It is not a substitute for a sealed enclosure: a sunshade does not add ingress protection or corrosion resistance, it only manages solar heating. Sunshades are frequently used together with an enclosure, or on instruments that are already otherwise weatherproof but still see excessive solar heat gain in direct sun.

How do instrument enclosures typically mount in the field?

The most common field mounting is a bracket that clamps the enclosure to a 2-inch (schedule 40) pipe stand set in concrete or fixed to structural steel, which keeps the instrument at a consistent, accessible height near the process connection it serves. Wall-mount brackets are also common where a suitable pipe stand is not practical. Whichever method is used, mounting should leave enough clearance around the enclosure to fully open its access door and reach the terminals or calibration adjustment without disturbing the process piping.

What should I look for in the access door or window?

A door needs a gasket and latch design rated to the same ingress protection level as the rest of the enclosure body, since the door is where most seal failures happen over time. A clear polycarbonate or tempered-glass viewing window lets a technician read a gauge or display without opening the enclosure at all, which matters in a hazardous area where opening a live enclosure may require a hot-work permit or de-energizing the circuit first. Confirm the window material is rated for the site's UV exposure and chemical environment.

What is the difference between a field instrument enclosure and an electronic instrument case?

A field instrument enclosure is an empty housing installed around a process instrument that is already mounted in the plant, chosen mainly for weatherproofing, corrosion resistance, and hazardous-area rating. An electronic instrument case is the enclosure the instrument itself ships in, whether a portable aluminum case for a handheld analyzer, a desktop case for a bench meter, or a 19-inch rack case for data acquisition or control electronics, and is selected more for form factor, EMI shielding, connector layout, and portability than for outdoor ingress protection.

What is a 19-inch rack case used for?

A 19-inch rack case follows a standard width so it slides into a standard equipment rack alongside other instrumentation, controllers, or data acquisition chassis. Rack cases are sized in rack units (U) of vertical height and are common for panel-mounted analyzers, signal conditioners, and monitoring electronics in a control room, lab, or instrumentation cabinet rather than out in the weather.

How often should an instrument enclosure be inspected, and what should I check?

There is no single interval that fits every site; it should follow the plant's own preventive maintenance schedule and the manufacturer's recommendation for the enclosure and any heater installed in it. A typical inspection checks the door gasket for compression set or damage, confirms the latch still draws the door fully closed, looks for corrosion or coating damage on the housing (especially at mounting points and cable entries), verifies conduit fittings and cable glands are still sealed, and, on a heated enclosure, confirms the heater and thermostat are functioning before winter.

What is the most common mistake when specifying an instrument enclosure?

Specifying the ingress rating and material without confirming the hazardous area classification of the actual installation location. An enclosure that is correctly rated NEMA 4X or IP66 for weather can still be entirely unsuitable, or unsafe, in a classified area that requires an explosion-proof or increased-safety rated housing. Always confirm the area classification for the specific installation point, not just the general plant type, before finalizing the enclosure spec.

Available for acquisition

Own InstrumentEnclosures.com

The .com that exactly matches the category term is available, and the complete website published on it comes with it. Ask through the form below and you will get a direct reply, usually within one business day.

Request a Quote

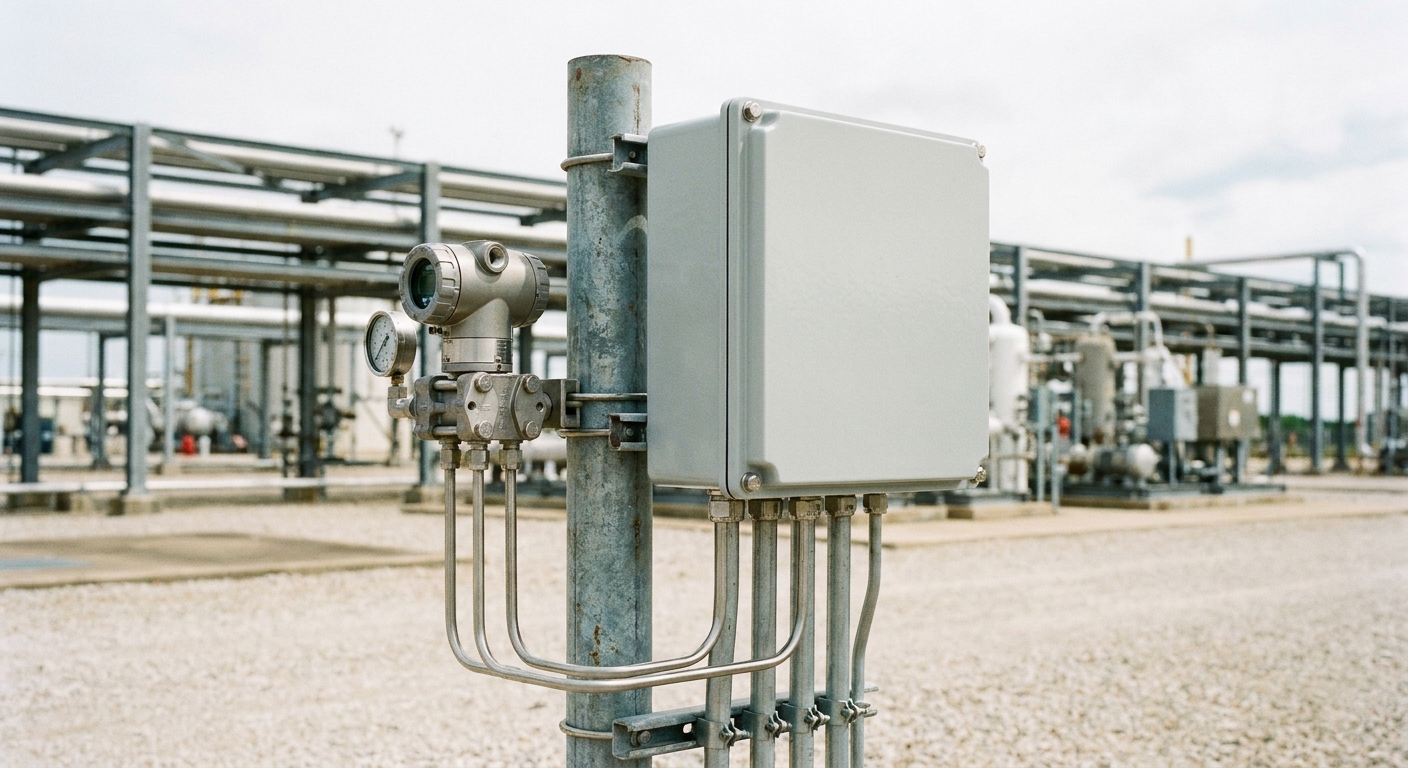

A fiberglass instrument enclosure mounted on a pipe stand, the product category this domain names
